Clean Nozzle

Here you can find the instructions how to clean the Nozzle of your Belt printer, follow along step by step.

1. Heat the printer to 220 Degrees Celsius.​

Tap on the temperature behind "Extruder", enter 220 and click the checkbox to confirm.

Temperature screen

2. Move the extruder up, so you can reach the Nozzle.​

Go to the screen of your printer, and tap the following buttons:

  1. Click on More More button
  2. Click on Move Move button
  3. Click on Home Home button
  4. Click on Home All Home All button
  5. Click on the back button Back button

3. Move the extruder up​

By going back to the Move menu. You can click on Y+ to move the extruder up to make room to clean the nozzle.

Y+ button

4. Clean the Nozzle.​

Hot nozzle

Careful: the nozzle is hot.

We move the device up and down and remove all material that should not be on the nozzle.

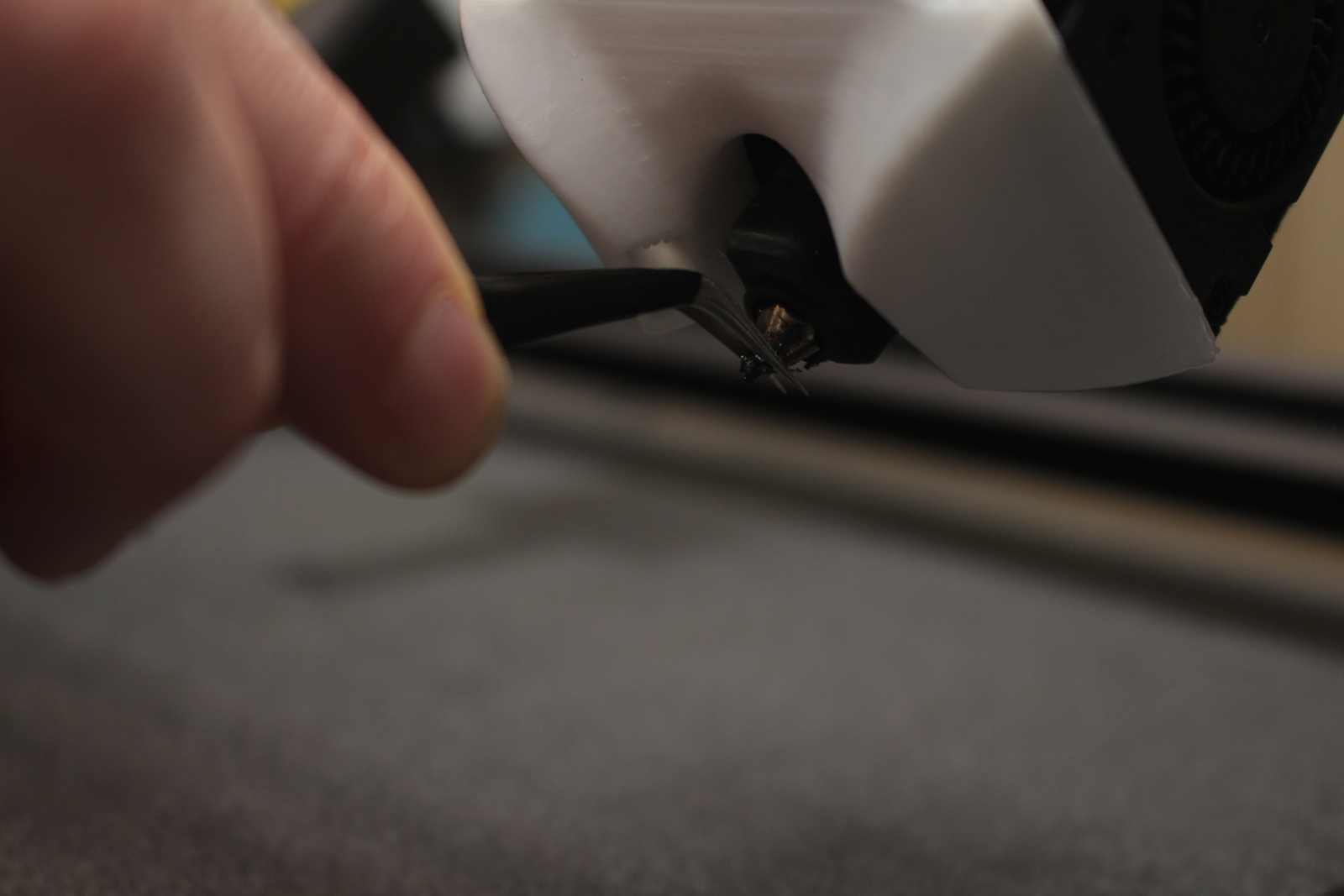

Cleaning the nozzle

5. Set the Temperature back to 0.​

Tap on the temperature behind "Extruder", enter 0 and confirm with the checkmark.
